Large Desk Turbo-Pumped Carbon Coater – DCT-300
for uniform and contamination-free carbon coatings

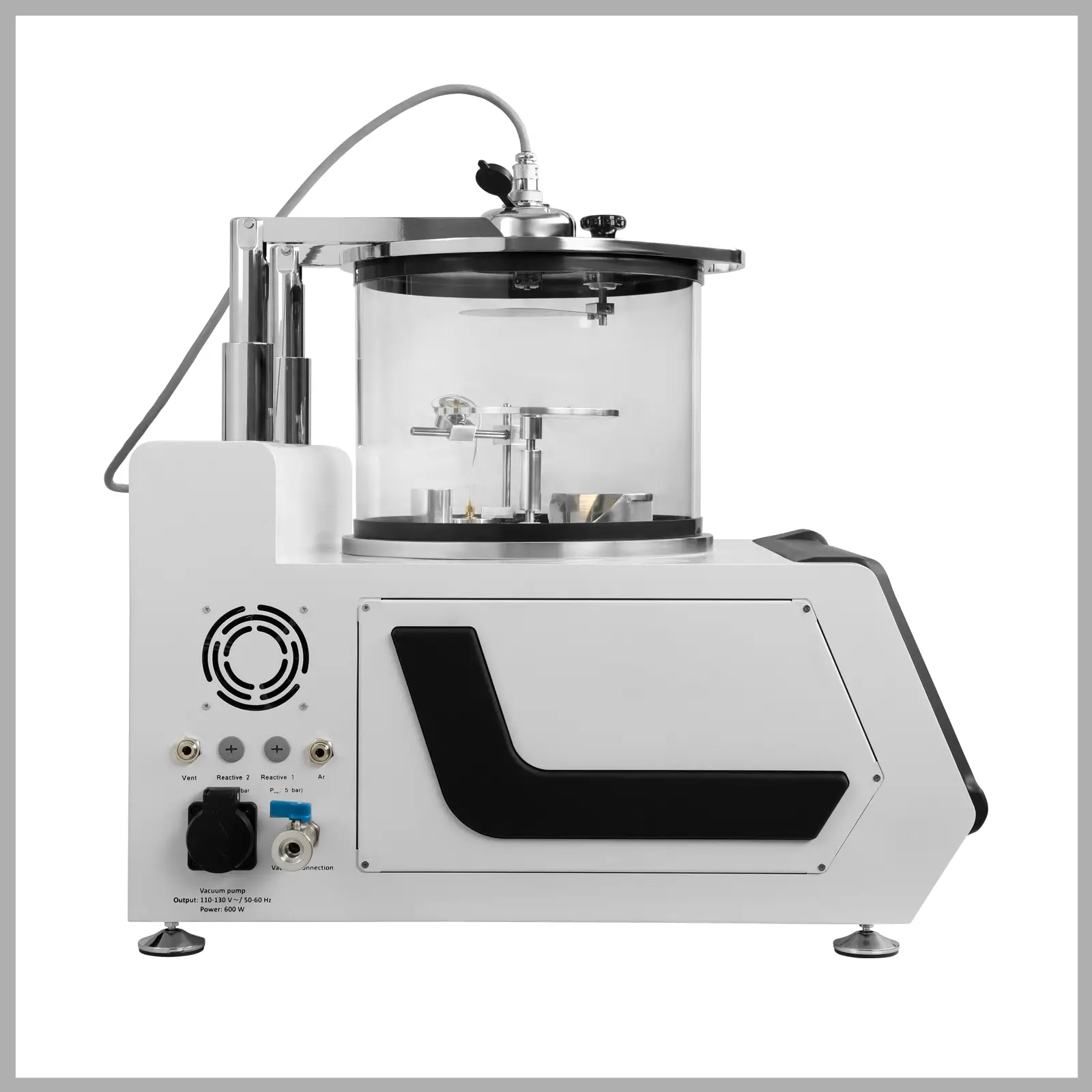

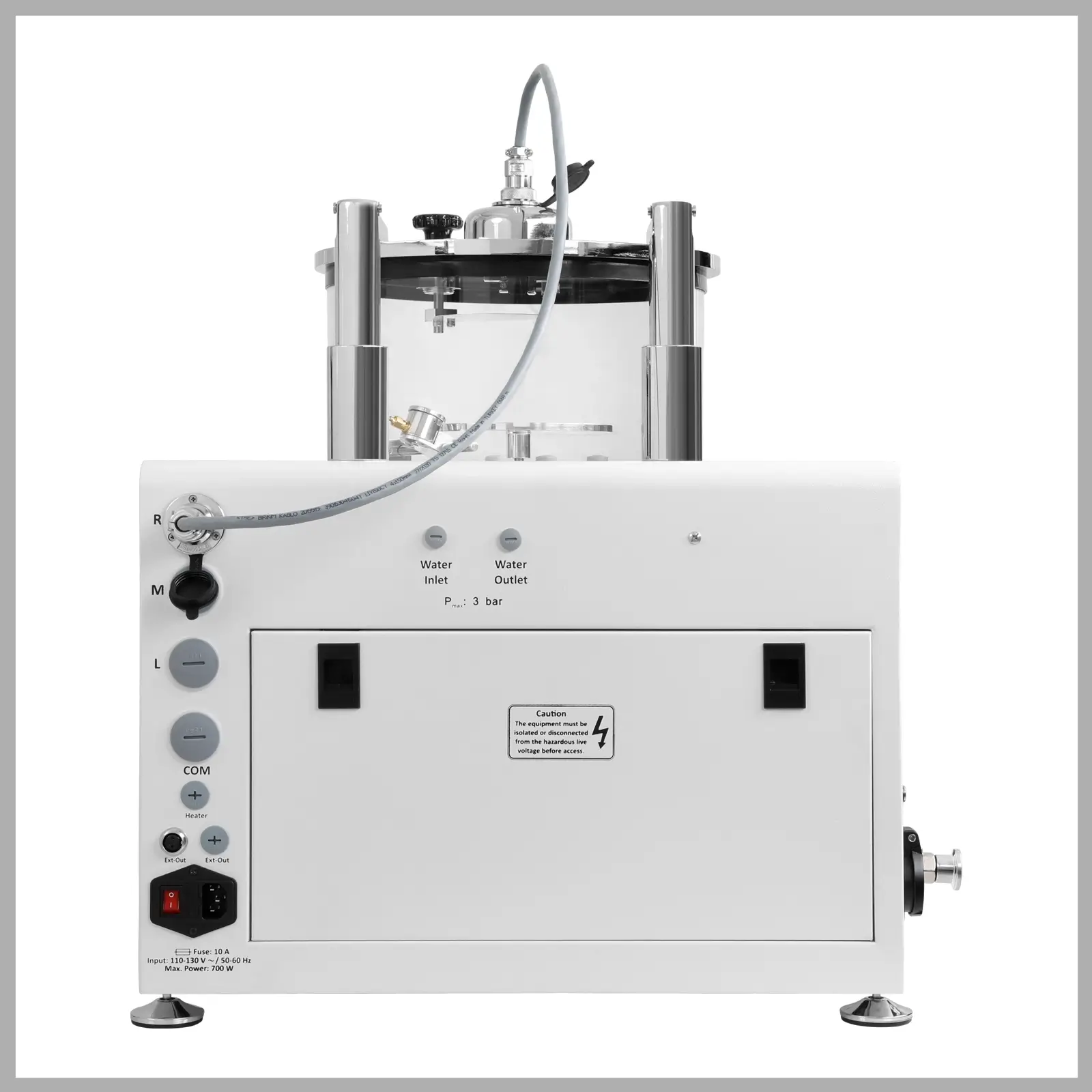

Large High-vacuum Desk Carbon Coater
DCT-300 is a turbo-pumped carbon coater with large chamber that is ideal for sample preparation for FE-SEM, EDS/WDS, TEM, EBSD analysis, and thin film applications. This high-vacuum coater offers high quality uniform carbon films with fine grain sizes which are suitable for specimens that require high-resolution and high-quality characterization.
DCT-300 with a 300 mm Dia. cylindrical chamber allows long-term deposition on samples with a diameter of up to 15 cm or several small specimens. The full-automatic programmable carbon coating process allows easy, precise, and repeatable performance.
Carbon fibers (Thread) or rods can be installed on separate chamber heads, as ordered by the customer, to coat the samples through different flash, pulsed or ramped modes (Last mode available for carbon rod) in a manual or automatic deposition process.
Pulsed Carbon Fiber Evaporation
The desk vacuum carbon coater is able to perform pulsed carbon fiber evaporation. Short pulses provide more controlled deposition and significantly reduces the number of debris associated with traditional carbon deposition.
Carbon Rod Evaporation (Optional)
The desk high vacuum carbon coater, DCT-300, could be equipped with carbon rod head (Optional). For this case an external 0-100 A high current power supply should be used instead of the internal high current power supply which is designed for carbon fiber evaporation.
Clean Vacuum
The vacuum chamber is Cylindrical Pyrex. The DCT-300 is fitted with an internally mounted 90 L/s turbo molecular pump, backed by a 6 m3/h two-stage rotary vane pump (Optional). It introduces clean vacuum without oil contamination which normally exists with ordinary diffusion pump.
- High vacuum level with built-in turbo pump 90 L/s (Leybold)
- Two-stage rotary vane backing pump (Diaphragm or scroll pump)
- 500 W switching DC power supply for carbon fiber deposition
- 1.2 kW high-current DC power supply for carbon rod deposition (Optional)
- Quartz crystal thickness monitor with precision of 1 nm and resolution of 1 Å
- Automatic venting valve
- Sample rotation, height, and tilt adjustable (For small sample holder stage)
- Planetary sample holder (Optional)
- Electronic shutter
- Easy-to-change specimen stages (Rotation stage as standard)
- Two-year warranty
- CE conformity
- Vac Coat products are covered worldwide by both public and product Liability Insurance in case any property damage or personal injury happens caused by the Vac Coat systems.
- Intuitive touch screen to control the coating process and rapid data input
- User friendly software, updatable via network
- Semi-full automatic coating process (Optional)
- Repeatable and programmable coating process in the automatic mode
- Pulsed or flash carbon fiber coating modes
- Pulsed or ramped carbon rod coating modes (Optional)
- Automatic carbon fiber/rod deposition according to the set thickness value
- Records and plots coating parameters graphs
- Storing coating recipes for repeatable depositions
- Fine grain structural deposition of carbon films for SEM, FE-SEM, EDX, and TEM sample preparation
- Conductive layers
- TEM grid plasma treatment for improved hydrophilicity (Optional)
- Turbo molecular pump with different pumping speeds (Optional):
Pumping Speed:
90 l/s
250 l/s
350 l/s
Ultimate Pressure:
5×10-6
1×10-6
7×10-7
- Max. power consumption: 2 kW
- Real-time plots of coating parameters
- Head and power supply for carbon rod
- Plasma rod and high voltage power supply for plasma treatment
- Quartz crystal sensor
- Planetary sample rotation
- Spare cylindrical vacuum glass chamber
- Carbon fiber (Thread)
- Sealing gaskets

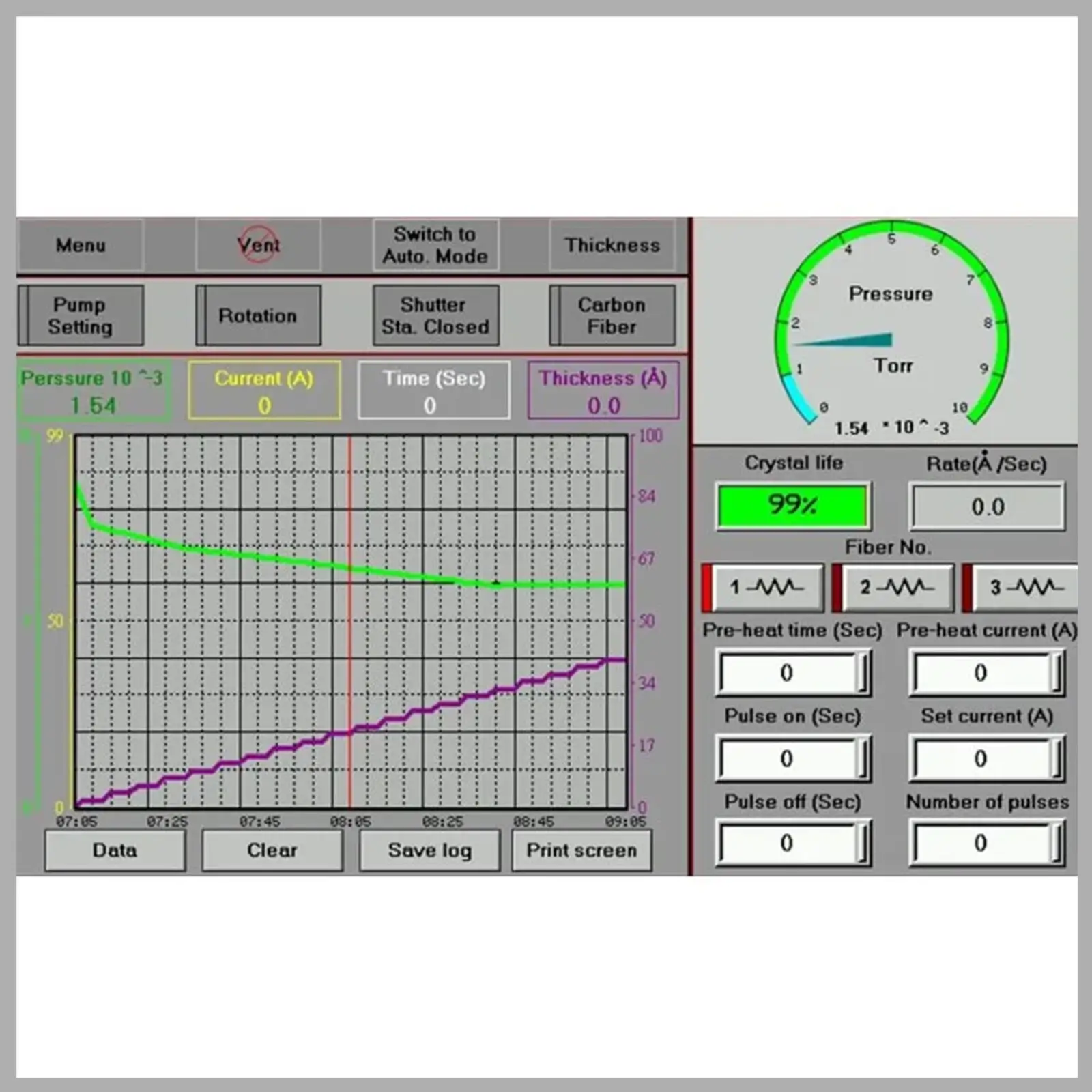

Touch Screen Control
DCT-300 is equipped with a 7” colored touch screen with full automatic control utilizing a user-friendly software to control and adjust the deposition process data. The vacuum and coating sequence information can be monitored as digital data or curves on the touch screen. The last 300 coatings information is saved on the history page and can be transferred to PC by a USB port on the device.
Sample Holder Stages
The DCT-300 can be equipped with different sample stage configurations depending on the user requirements. The sample stages are rotatable with adjustable height and angle and easy to change. The rotary planetary sample stage is a good choice for uniform coating of porous specimens (Optional).
For deposition on large samples, a 6-inch rotatable (No incline adjustable) sample holder stage is recommended (Optional).
- Dimensions: 580 × 500 × 630 mm (H × W × D)
- Weight: 46 Kg
- Vacuum Chamber Dimension: Borosilicate Glass, 300 mm Dia. × 200 mm Height
- Display Screen: 7” Diagonal (16:9) 800 × 480 High Color- Graphic TFT- LCD
- Data Transfer: USB Port – For Transferring the data and graph to PC
- Carbon Fiber: Carbon fiber thread diameter: 0.8 mm (Thicker fiber is not recommended)
- Carbon Rod: Carbon rod diameter: 3.2 mm
- Sample Holder Dimension:
- 60 mm Dia., can contain:
- 23 × 9.6 mm stubs or
- 14 × 12.7 mm stubs or
- 5 × 19 mm stubs
- 4 x 25 mm stubs
- 150 mm Dia. sample holder for large substrates
- 60 mm Dia., can contain:
- Chamber's Base: Stainless Steel with Turbo Pump, Thickness Gauge, Shutter, Pressure Gauge, Sample Holder Inlet port
- Chamber’s Lead: Made of Aluminum / SST- Carbon lead: Contains carbon fiber (Thread)/ rod holder
- Specification: Crystal thickness gauge with sensor, silver coated crystal quartz, oscillator
- Resolution: ±1 Angstrom
- Accuracy: ±1 Nanometer
- Turbo Molecular Pump: Pumping Speed of 90, 250, or 350 L/s (Optional) (Leybold)
- Backing Pump: Two-stage rotary vane / diaphragm pump / scroll pump
- Pressure Gauge: Leybold (Ionivac model); Full Range
- Final Vacuum: 8 × 10-6 Torr (Depends on the turbo pump speed)
- Carbon Coating: Pulsed and Flash mode carbon fiber coating / Pulsed or Ramped carbon rod coating
- Gas: Argon or Nitrogen to purge the chamber (Optional)
- Electric Power Supply:
- HC: 24V, 20A (Carbon fiber evaporation)
- HC: 12V, 100A (Carbon rod evaporation)
- Control of Argon supply: Electronic leak valve
- Shutter: 1 piece
- Electrical Inlet: Inlet: 220-240 V, 50/60 Hz; or 110 V, 10-12 A, 50/60 Hz *
* Single-phase AC power with appropriate earth connection is required.
