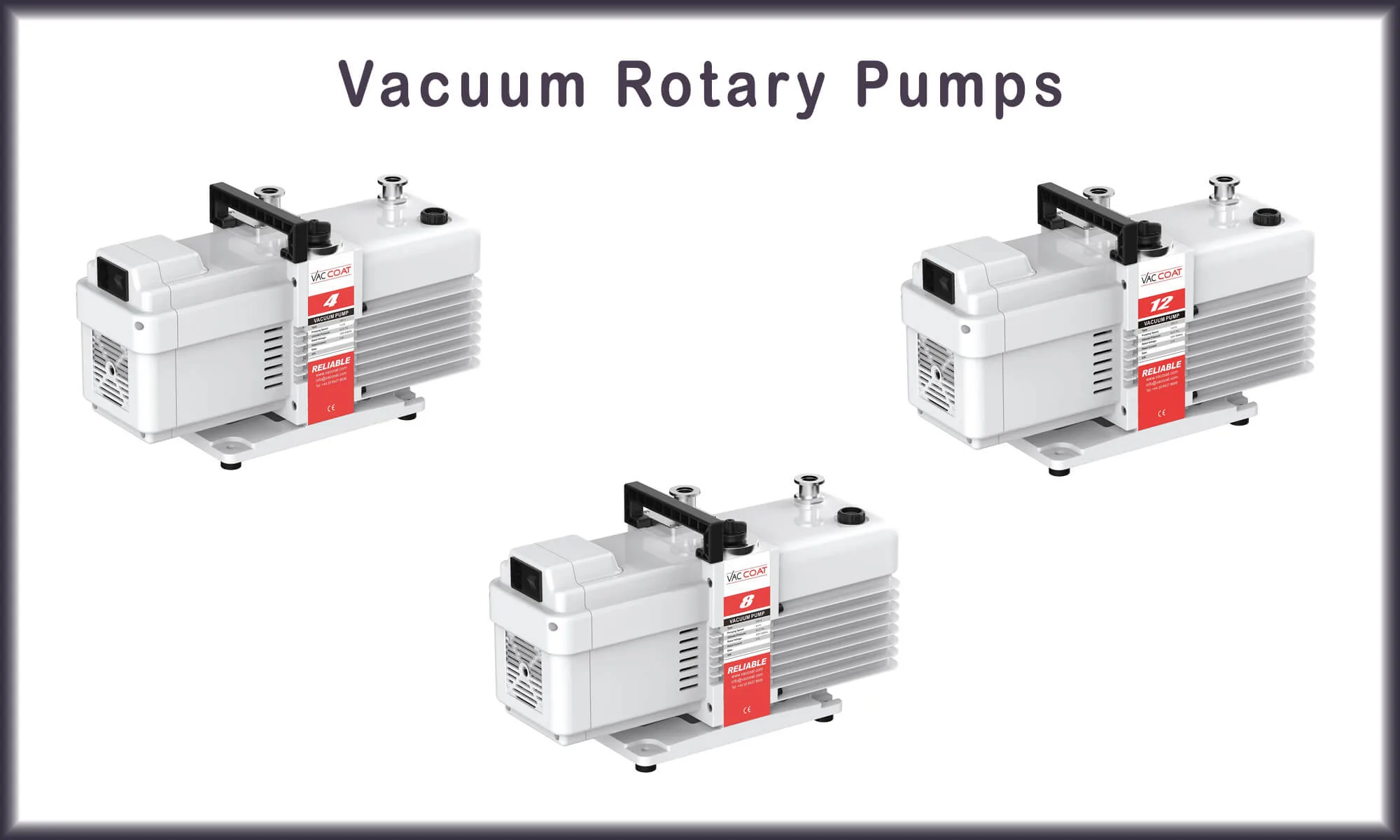

VRD-4 rotary pump

vrd-4 rotary pump

VRD-8 rotary pump

VRD-8 rotary pump

VRD-12 rotary pump

rotary vacuum pumps

Rotary Vacuum Pumps

Rotary Vacuum Pumps are in the group of displacement pumps and are of the positive displacement type. This means that for each pump cycle, a constant volume of fluid is displaced, regardless of the pump pressure resistance. As a result, any blockage in the system can damage the pump and cause cracks in the system.

Rotary pumps consist of a cylindrical chamber with an inlet on one side and a discharge outlet on the other. In these pumps, the rotor(smaller in diameter than the cylindrical chamber) is placed so that it is located above the center line of the cylindrical chamber so that the minimum distance between the rotor and the chamber is at the top and the maximum distance is at the bottom. The rotor caries vanes that move in and out as the rotor rotates and slip in the rotor slot. These vanes are usually in contact with the chamber wall by centrifugal force or spring. In order to complete the contact surfaces, a controlled amount of oil is pumped into the cylindrical chamber.

Product: VRD

Features

  • Two-Shift adjustable gas ballast valve satisfies different requirements of condensable vapor(such as water vapor) to be exhausted out of pump in different  processes.
  • Dual protection of oil anti-sucking back ensures vacuum system from oil pollution when pump stops running and needs to be easily restarted.
  • Forced oil circulation system consisted of oil pump and constant pressure oil supply mechanism ensures stable running of the pump.
  • Less components are used, easy to maintain and repair.

There are different models of VRD series:

rotary vacuum pumps
Aluminum (Al) Sputtering Targets
MODELVRD-4VRD-6VRD-8VRD-16VRD-24VRD-30VRD-48VRD-65
 Displacement Speed m3/h (L/s)     50Hz  4 (1.1) 6 (1.7) 8 (2.2)16 (4.4)24 (6.6)30 (8.3)48 (13.3)65 (18)
 60Hz4.8 (1.3)7.2 (2)9.6 (2.6)19.2 (5.2)28.8 (7.9)36 (9.9)57.6 (16)78 (21.6)
 Ultimate partial pressure gas ballast close (Pa) 5x10 -2  5x10 -2  5x10 -2  4x 10 -2  4x 10 -2  4x 10 -2  4x 10 -2  4x 10 -2
 Ultimate total pressure gas ballast close (Pa) 5x 10 -1  5x 10 -1  5x 10 -1  4x 10 -1  4x 10 -1  4x 10 -1  4x 10 -1  4x 10 -1
 Ultimate partial pressure gas ballast open (Pa)10 1010 8x 10 -1  8x 10 -1 8x 10 -1  8x 10 -1  8x 10 -1
 Power supply Single/three     phase  Single/three     phase  Single/three  phase  Single/three phase  Single/three phase  Single/three phase  Three phase  Three phase
 Power rating (Kw) 0.4/0.37 0.4/0.37 0.4/0.37 0.75/0.55 1.1/0.75 1.1 1.5 2.2
 Intake and exhaust port DN (mm) KF16/25 KF16/25 KF16/25 KF25 KF25/40 KF25/40 KF40 KF40
 Oil capacity (L) 0.6~1.0  0.6~1.0 0.6~1.0 0.9~1.5 1.3~2.0 1.3~2.0 3.3~4.5 3.3~4.5
 Motor speed (rpm) 50Hz  14401440  1440 1440 1440 1440 1440 1440
 60Hz  1720 1720 1720 1720 1720 1720 1720 1720
 Ambient temperature  (°C) 10-40 10-4010-4010-4010-4010-4010-4010-40
 Noise (dB) ≤56≤56  ≤56 ≤58 ≤58 ≤58 ≤62 ≤62
 Weight (kg) 19 19 21 30 35  43 62 65

Product: VDC

VDC pump is an innovative motor direct driven dual-stage oil-sealed rotary vane vacuum pump with brushless DC motor. The pump is absolutely energy-saving with small motor power design. The feature of low noise level is an ideal choice for high requirements of quiet operation, especially for analytical applications.

Benefits

  • Low noise level thanks to brushless DC motor design
  • Low power consumption for cost saving
  • Low and easy maintenance
  • Easy installation
  • Small footprint
Aluminum (Al) Sputtering Targets
MODELVDC-4VDC-6VDC-8VDC-12
 Displacement Speed m3/h (L/s)     50/60 Hz   4 (1.1) 6 (1.6) 8 (2.2)11 (3.0)
 Ultimate partial pressure gas ballast close (Pa) 5x10 -2  5x10 -2  5x10 -2  5x 10 -2
 Ultimate total pressure gas ballast close (Pa) 5x 10 -1  5x 10 -1  5x 10 -1  5x 10 -1
 Ultimate partial pressure gas ballast  open (Pa)10 101010
 Power supply Single-ph 220V 50-60HZ Single-ph
220V 50-60HZ
Single-ph
220V 50-60HZ
Single-ph
220V 50-60HZ
 Power rating (Kw)0.370.37 0.370.37
 Intake and exhaust port DN (mm) KF16/25 KF16/25 KF16/25KF16/25
 Oil capacity (L) 0.6~1.0  0.6~1.0 0.6~1.0 0.6~1.0
 Ambient temperature  (°C) 5 - 40℃5 - 40℃5 - 40℃5 - 40℃
 Noise (dB) ≤50≤50 ≤52 ≤52
 Weight (kg) 14.514.515.515.5
