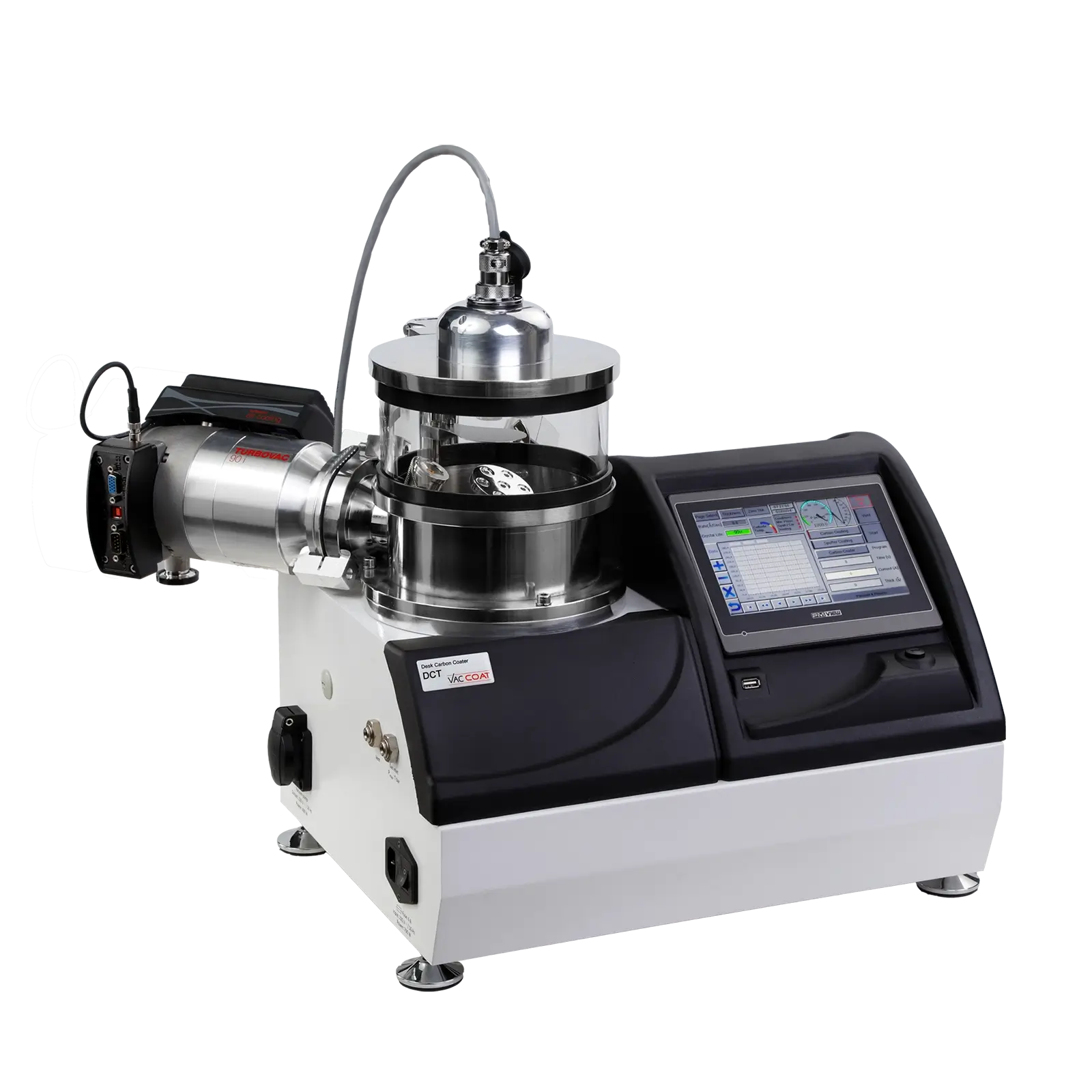

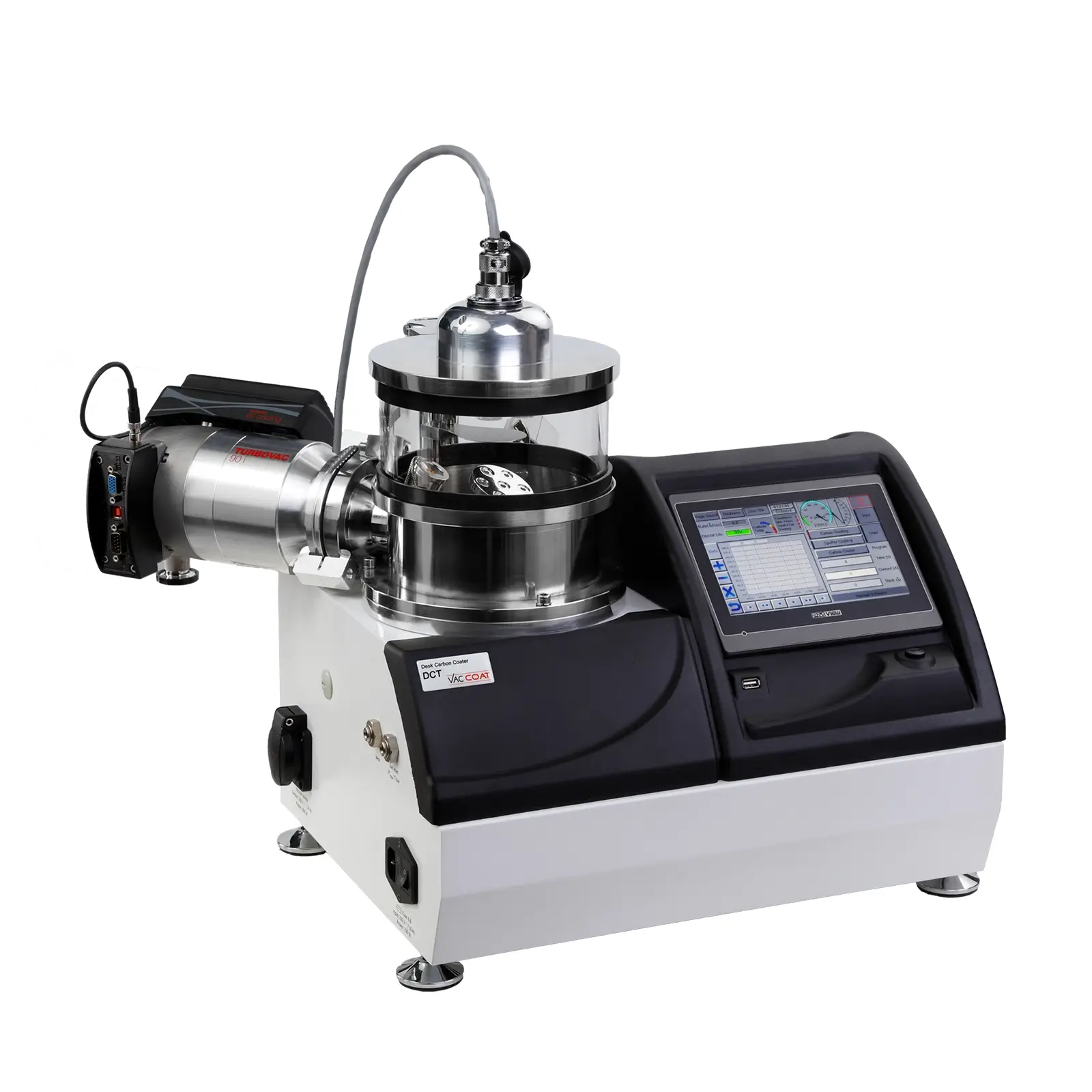

DCT is a turbo-pumped carbon coater that is ideal for FE-SEM, EDS/WDS, TEM, EBSD, and thin film applications. This high-vacuum carbon coater offers high quality uniform carbon films with fine grain sizes which are suitable for specimens that require high-resolution and high-quality characterization.
Features of DCT
- High vacuum level with built-in turbo pump 90 L/s (Leybold)
- Two-stage rotary vane backing pump (Diaphragm or scroll pump)
- 500 W switching DC power supply for carbon fiber deposition
- 1.2 kW high-current DC power supply for carbon rod deposition (Optional)
- Quartz crystal thickness monitor with precision of 1 nm and resolution of 1 Å
- Automatic venting valve
- Sample rotation, height, and tilt adjustable
- Planetary sample holder (Optional)
- Electronic shutter
- Easy-to-change specimen stages (Rotation stage as standard)
- Two-year warranty
- CE conformity
- Intuitive touch screen to control the coating process and rapid data input
- User friendly software, updatable via network
- Semi-full automatic coating process (Optional)
- Repeatable and programmable coating process in the automatic mode
- Pulsed or flash carbon fiber coating modes
- Pulsed or ramped carbon rod coating modes
- Automatic carbon fiber/rod deposition according to the set thickness value
- Records and plots coating parameters graphs
- Storing coating recipes for repeatable depositions
- Vac Coat products are covered worldwide by both public and product Liability Insurance in case any property damage or personal injury happens caused by the Vac Coat systems.
- Fine grain structural deposition of noble metals for SEM, FE-SEM, EDX, and TEM sample preparation
- Conductive layers
- TEM grid plasma treatment for improved hydrophilicity (Optional)
- Max. consuming power: 2 kW
- Automatically controlled pressure-independent coating
- Fine control of vacuum pressure with automatic leak valve
- Real-time plots of coating parameters
Options and Accessories
- Head and power supply for carbon rod
- Plasma rod and high voltage power supply for plasma treatment
- Quartz crystal sensor
- Planetary sample rotation
- Spare cylindrical vacuum glass chamber
- Carbon fiber
- Sealing gaskets
Pulsed Carbon Fiber Evaporation
The desk vacuum carbon coater is able to perform pulsed carbon fiber evaporation. Short pulses provide more controlled deposition and significantly reduces the number of debris associated with traditional carbon deposition.
Carbon Rod Evaporation (Optional)
The desk high vacuum carbon coater could be equipped with carbon rod head (Optional). For this case an external 0-100 A high current power supply should be used instead of the internal high current power supply which is designed for carbon fiber evaporation.
Touch Screen Control

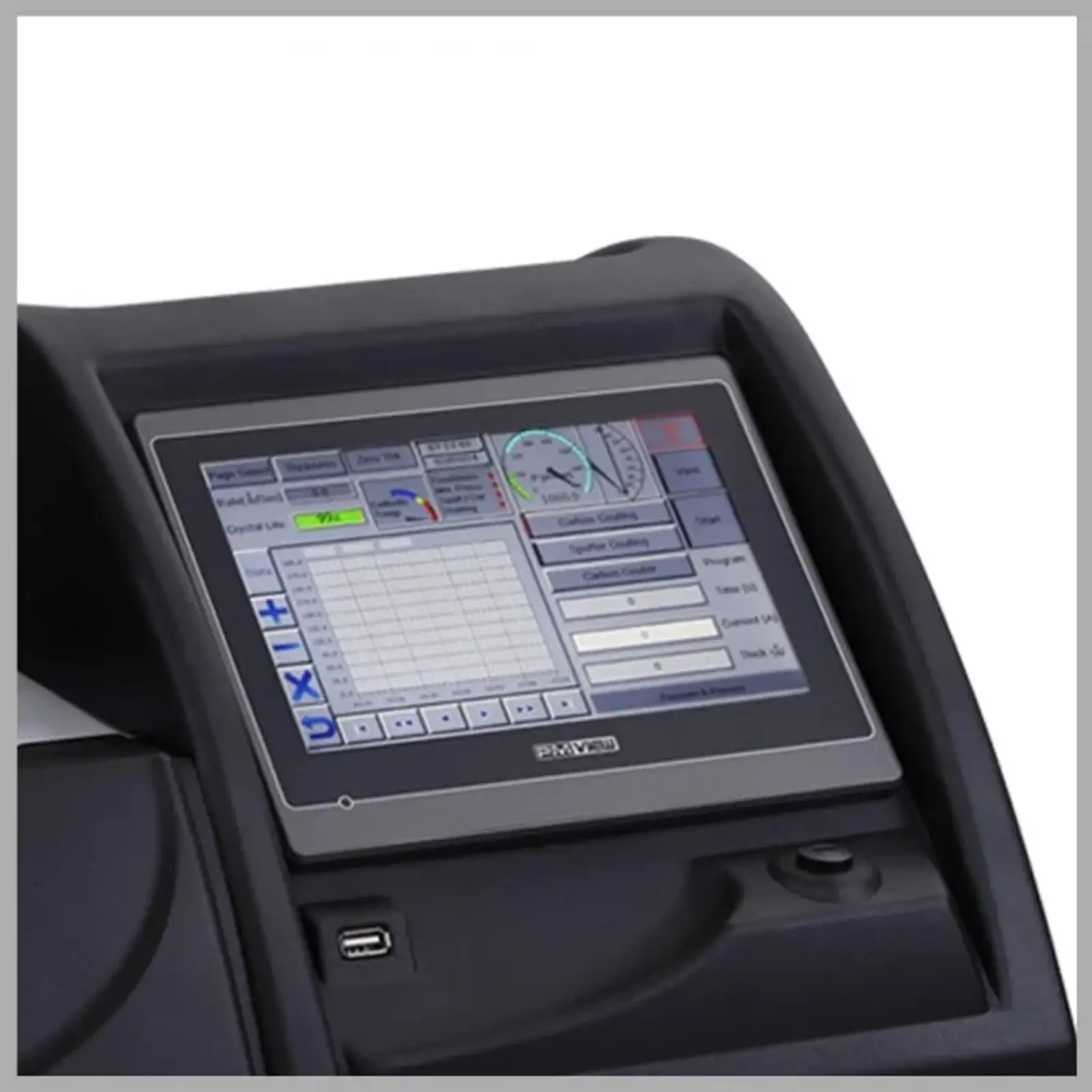

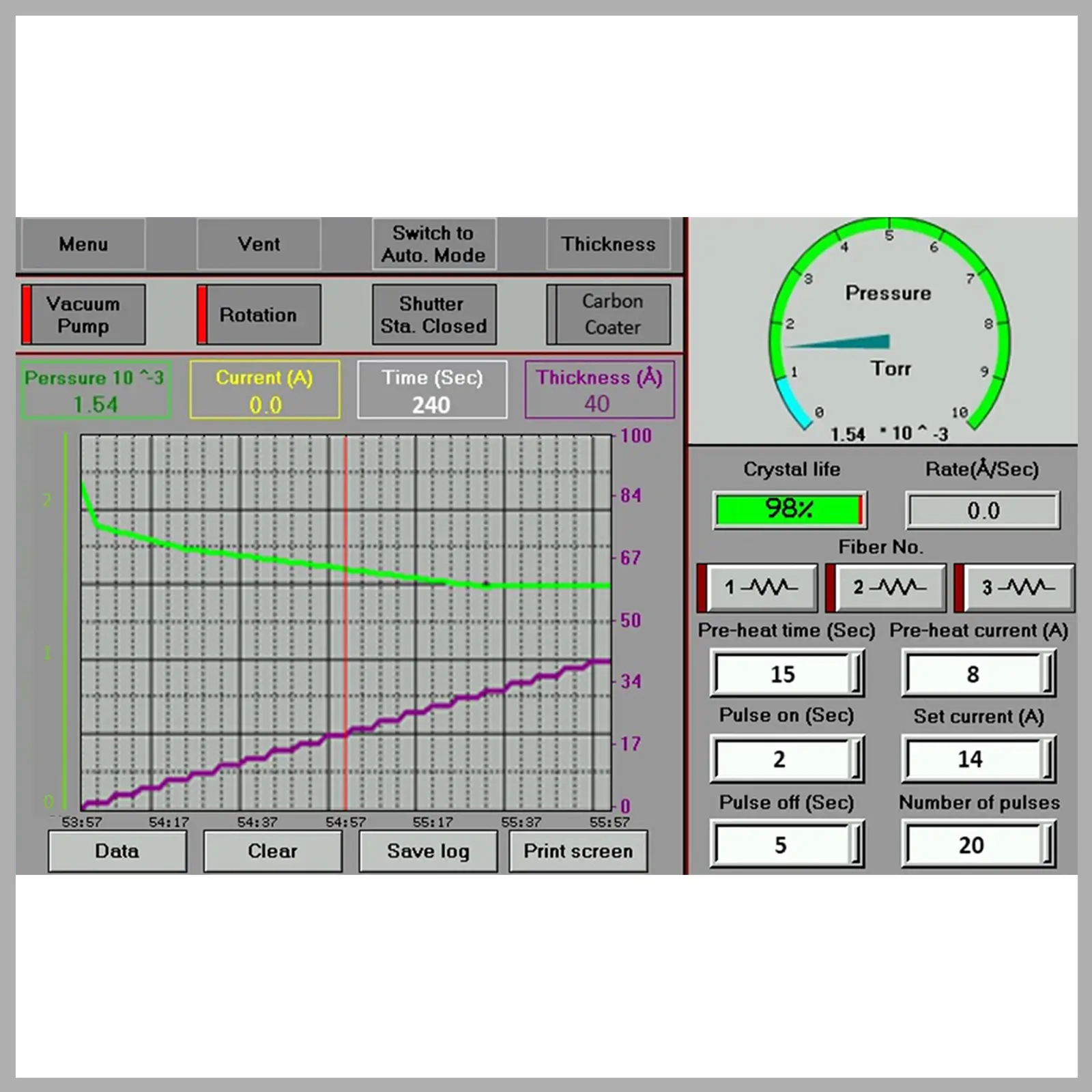

Desk carbon coater is equipped with a 7” colored touch screen with full automatic control utilizing a user-friendly software to control and adjust the deposition process data. The vacuum and coating sequence information can be monitored as digital data or curves on the touch screen. The last 300 coatings information is saved on the history page and can be transferred to PC by a USB port on the device.
Sample Holder Stages of DCT

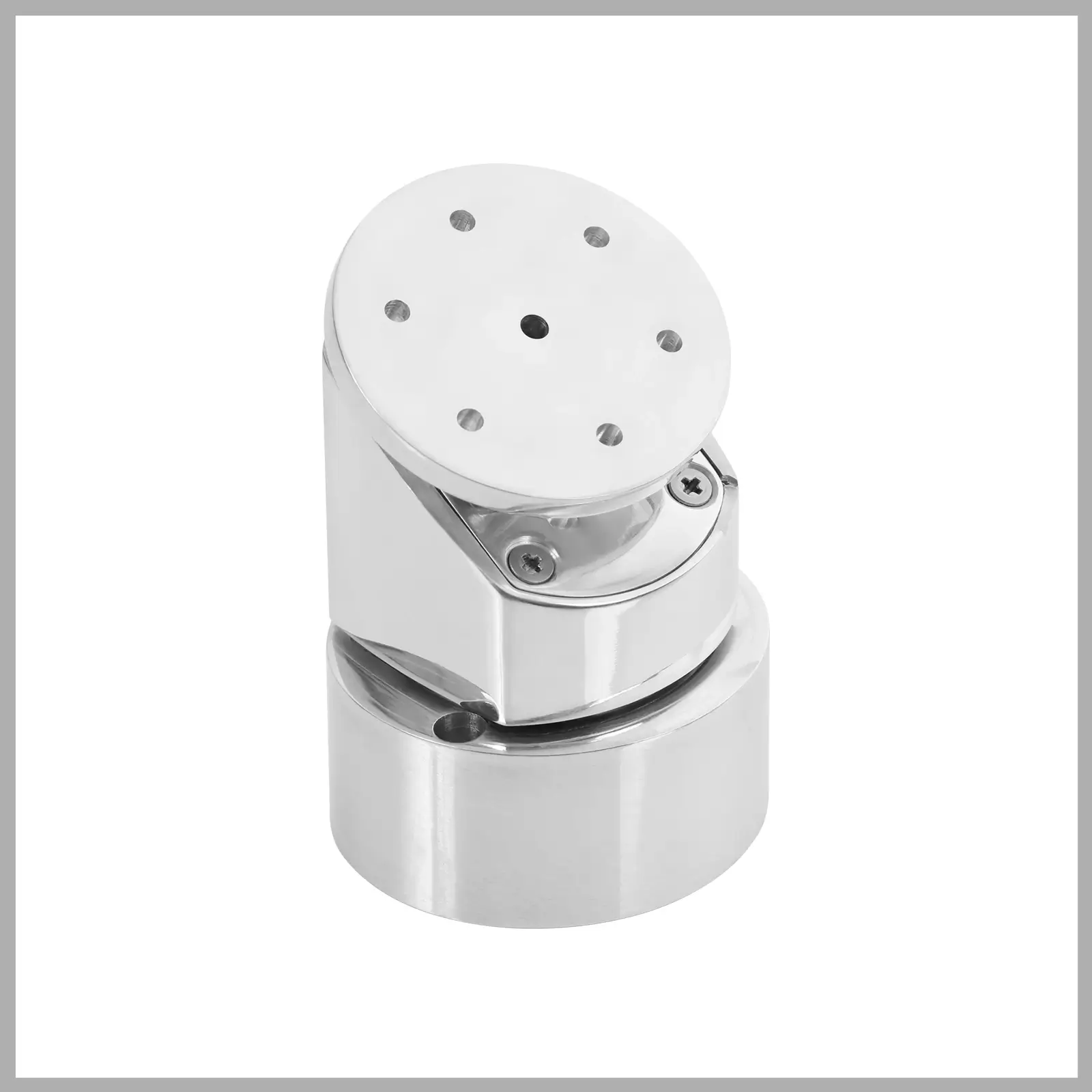

The turbo-pumped carbon coater can be equipped with different sample stage configurations depending on the user requirements. The standard sample stage is rotatable with adjustable height and angle and can be changed easily. The rotary planetary sample stage is a good choice for uniform coating of porous specimens (Optional).
Standard Sample Stage
Rotary Planetary Sample Stage
Clean Vacuum of DCT
The vacuum chamber is made from Cylindrical Pyrex and Stainless Steel. The DCT is fitted to a 90 L/s turbomolecular pump, that can be backed by a 6 m3/h two stage rotary vane pump (Optionally supplied by the manufacturer), or a scroll or diaphragm pump (based on the customer choice). It introduces clean vacuum without oil contamination which normally exists with ordinary diffusion pump.
Newly Designed Sample Holder
A new 4-inch rotating sample holder with an optional gear offset is designed for the system to increase the deposition area and the number of coating stubs in a run (Customizable for max. 50×1 mm stubs).
Detailed Features

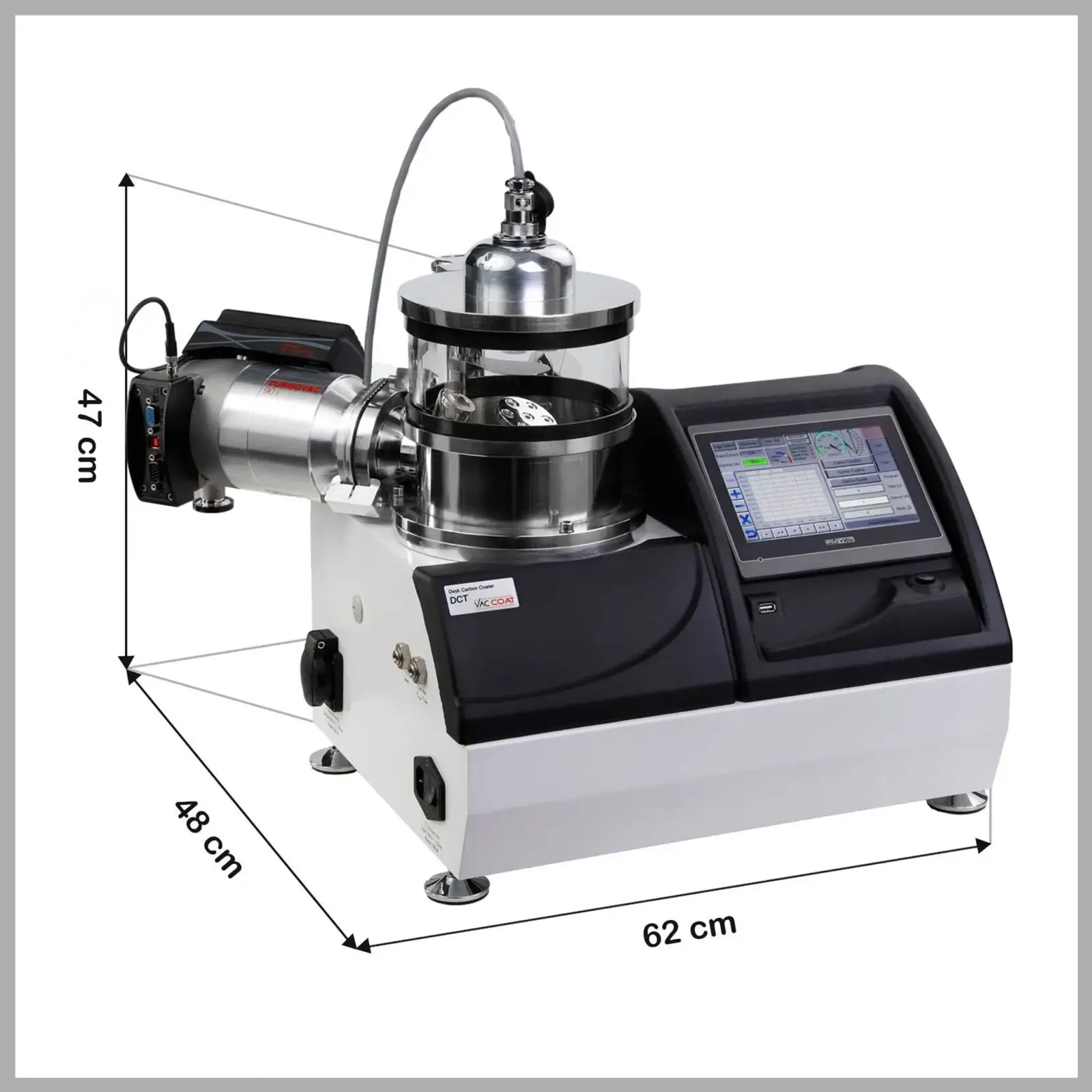

- Dimensions: 470 × 620 × 480 mm (H × W × D)
- Weight: 36 Kg
- Vacuum Chamber Dimension: Borosilicate Glass chamber, 170 mm Dia.× 140 mm Height (50 mm High SST + 90 mm High Pyrex)
- Display Screen: 7” Diagonal (16:9) 800×480 High Color- Graphic TFT- LCD
- Data Transfer: USB Port – For Transferring the data and graph to PC
- Carbon Fiber: Carbon fiber thread diameter: 0.8 mm (Thicker fiber is not recommended)
- Carbon Rod: Carbon rod diameter: 3.2 mm
- Sample Holder Dimension: Max Diameter 60 mm, can contain:
- 11×9.6 mm stubs or
- 6×12.7 mm stubs or
- 5×19 mm stubs
Sample holder with 100mm Dia. with Offset gear box (optional)
- Chamber’s Lid: Made of Aluminum/SST with triple carbon fiber (thread) holder or/and a rod holder
- Specification: Crystal thickness gauge with sensor, silver coated crystal quartz, oscillator
- Resolution: ±1 Angstrom
- Accuracy: ±1 nanometer
- Turbo Molecular Pump: Pumping Speed of 90 L/s, (Leybold)
- Backing Pump: Two-stage rotary vane/diaphragm pump/scroll pump
- Pressure gauge: Leybold (Ionivac model); Full Range
- Final Vacuum: <8×10-6 Torr
- Carbon Coating: Pulsed and Flash mode carbon fiber coating
- Carbon Coating: Pulsed or Ramped mode carbon rod coating
- Glow Discharge Plasma (Optional):
- TEM grid plasma treatment
- Enhancing surface hydrophilicity
- Gas: Argon or Nitrogen to purge the chamber (Optional)
- Electric Power Supply:
-
HC: 24V, 20A (Carbon fiber evaporation)
- HC: 12V, 100A (Carbon rod evaporation)
-
- Control of Argon supply: Electronic leak valve
- Shutter: 1 piece
- Electrical Inlet: Inlet: 220-240V, 50/60Hz; or 110V, 50/60Hz *
* Single-phase AC power with appropriate earth connection is required.
