Outgassing is defined as the release of a gas which has been trapped, dissolved, absorbed, or frozen in a material, a challenge in the way of high vacuum deposition. In thermodynamics, gas molecules always tend to move from a place with higher pressure to a place with lower pressure, so decreasing the pressure level in a chamber faces impediments like gas load into the chamber.

Today, many technologies are used toward obtaining nano-sized and nano-thickness materials; since unique and novel properties emerge in optical, electrical, dielectric applications and so on. A thin film is a new category of material science that is defined as a layer with thickness in the range of several nanometers to a few micrometers. Thin films can be amorphous or polycrystalline, due to the material’s nature and method of preparation; also they may contain a thin layer of a material or several thin layers of different materials, as in solar cells and electrochemical cells, in order to obtain desired properties [1]. Hence, presence of impurities may deteriorate the required properties.

Vacuum deposition is a key factor in preparing high quality thin films, in which the pressure of deposition chamber is decreased well below the atmospheric pressure. Therefore, mean free path of particles leaving target toward the substrate is increased, which makes thin film formation possible. Also undesirable particles are reduced within the chamber, resulting in more homogenous, purer thin films.

In thermodynamics, gas molecules always tend to move from a place with higher pressure to a place with lower pressure, so decreasing the pressure level in a chamber faces impediments like gas load into the chamber. Amount of gas load into the chamber affect pumping speed, pumping time, and lowest accessible pressure [2]. In high vacuum systems, the most important source of problem in the vacuum process is the gases that are expelled from the surfaces of objects in the vacuum chamber, which is called outgassing.

Outgassing Sources

In order to reduce the incomplete bonds of surface atoms, surfaces are active sites for the adsorption of gases and vapors that are released from the surface when placed in a vacuum. This means that all surfaces, regardless of the type of material, have Outgassing. The four main sources for the outgassing phenomenon are:

Outgassing Processes

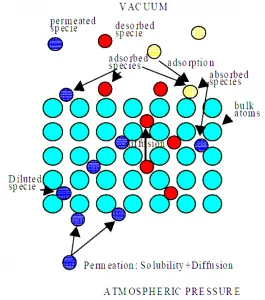

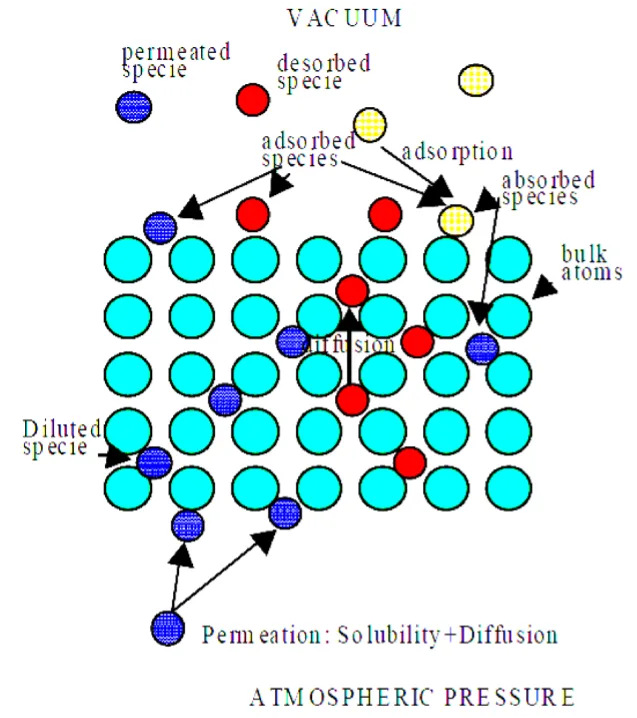

Figure 1. A Demonstration of Four Processes of Outgassing.
  • Vaporization: The release of matter molecules from its surface
  • Desorption: The release of gas molecules that have already been adsorbed on the surface of matter. This process may occur due to heat, electrical, or optical stimulation.
  • Diffusion: The release of gaseous molecules from bulk of the material. These molecules, which are dissolved in the bulk of the material during the manufacturing process or when the material has been exposed to air, reach the surface of the material when the material is in a low pressure environment (such as a vacuum chamber) and release from the surface.
  • Permeation: The entry of air atoms out of the chamber into it. This phenomenon occurs when the gas atoms around the vacuum chamber enter the chamber by penetrating solid walls of the vacuum chamber. This process consists of three steps. First, the atoms are absorbed by the outer wall of the chamber. In the second step, they diffuse through the bulk material and reach the surface of the inner wall of the vacuum chamber and finally are released from the inner wall in to the vacuum chamber. These four processes are shown in Figure 1.

Outgassing Materials

Outgassing rate is the amount of gas released per unit area during per unit time, which can differ up to 9 order of magnitude for different materials. Therefore, only materials are allowed to be present in a high vacuum environment if their outgassing rate is not more than a permissible limit. Some materials that should never be used in a vacuum environment are: liquids, plastics, elastomers, adhesives, porous ceramics and effects related to living organisms such as hair, nails, skin cells, fingerprints, etc. An approximation of outgassing flow rate is given by Equation (1):

Outgassing rate of Different Materials

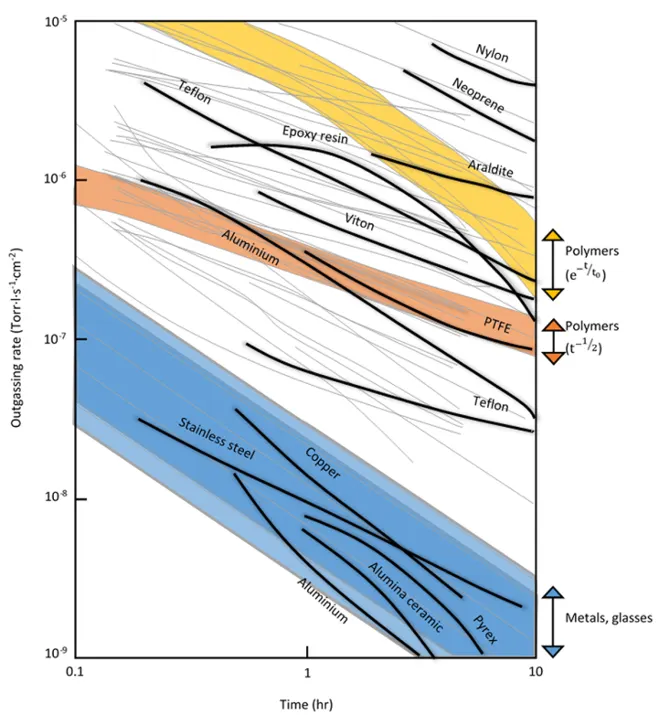

Figure 2. Outgassing rate of Different Materials [3]

Q ̇= ∑ a1h∙A / (t⁄1h)^α          Equation (1)

Where A is geometrical surface term, a1h is outgassing rate after 1 hour, α is decay constant, and the sum is over contributions from all the surfaces. Decay constant is in the range of 0.2-1.2 and contains information on type of material and outgassing mechanism. Decay constant of several types of materials is shown in table 1. Outgassing rate of different materials is shown in Figure 2.

Material Decay constant (α)
Clean metal surfaces 1.1-1.2
Desorption from surfaces 1
Metals, glasses, and ceramics 1
Polymers 0.4-0.8
Highly porous surfaces 0.5-0.7
Diffusion controlled outgassing from the bulk 0.5

Table 1. Decay constant of some type of materials [3].

Methods of Reducing Outgassing

There are several methods to lower the amount of outgassing in vacuum chamber which include suitable choice of material, handling, and cleaning the surfaces, surface treatment, and baking. These methods are generally based on two approach:

    1. Temporarily stimulate molecule desorption from the surface as many as possible before use
    2. Formation of a barrier on the surface to block adsorbed molecules desorb throughout operation

Several methods to reduce outgassing in vacuum chamber are presented in Table 2.

Method Material Effective for Not effective for Vacuum level time
Wash Hot water/solvent, detergent Gross/fine contaminants Grease Pressures >10-3mbar < 30 min
Vapor degrease Heated solvent Gross/fine contaminants, loosely bound heavy molecules Inaccessible areas, large parts Order of magnitude reduction in outgassing < 1 hour
Blowing Air, nitrogen, or other dry inert gas Gross/fine contaminants, loosely bound heavy molecules Grease   < 30 min
Chemical treatment H2O, HCl, HNO3 or HF Rough surfaces (O2, C, P or Cladsorption)   Order of magnitude reduction in outgassing rate < 30 min
Reactive gas O2 or NO for oxidation, H2 or NH3 for reduction Hydrocarbons, surface reconditioning after atmospheric exposure Can form unwanted oxides Reduction in outgassing rate by 50% up to 5 orders of magnitude 30 min- 2 hours
Glow discharge Ar/5-10%O2, Ar, O2, N2, H2,… C or O based molecules, large surface areas, reconditioning after atmospheric exposure Large components 13 x reduction in outgassing rate ~ 2 hours
Passive coating Si, TiN, BN, Al2O3,ZrO3 H2 from metals, CO, CO2, H2O   0.1-100 x reduction in H2 outgassing Depends on size
Active coating Hf, Zr, Ti, Pd, V and combination H2, H2O, CO, O2, N2, small spaces Hydrocarbons,
inert gas, continual
operation (needs
re-activation and
replacement)
Outgassing reduced to <10−13 with no bake Depends on size
Vacuum bake   Metals, UHV, H2O Temperature sensitive components Reduces outgassing of H2 to<10−14 2-400 hours
Air bake Air Stainless steel,
aluminum,
H2, CO, CO2, CH4
Plastic, cadmium plating, temperature sensitive components Reduces outgassing of H2 to<10−14 2-400 hours

Table 2. Methods of Reducing Outgassing [3].

Vacuum Outgassing Vs. Leakage

Many times users of high vacuum systems confuse outgassing with leakage. In the case of Outgassing, the pressure decreases over time, but in the leakage case, the pressure does not fall below a certain level.

The lower the pressure, the more outgassing occurs. This phenomenon is usually not noticeable at the pressures reached by the rotary pump. Many devices that operate in the very high vacuum range (UHV) use so-called electric heating blankets. In these systems, by heating or so-called baking the system, the heat energy is transferred to the molecules trapped on the inner surfaces of the vacuum chamber and they are separated from the surface faster and transferred to the outside of the vacuum chamber.

As mentioned, the material used in the construction of vacuum systems has a significant effect on reducing the outgassing phenomenon. This point has not been ignored in the production of Vac Coat products. The vacuum chamber and its components in the products of this company, which are all vacuum coating systems, are designed and built in such a way as to minimize the amount of outgassing in these systems.

The Vac Coat vacuum coating systems use the physical vapor deposition (PVD) method for the coating. In addition, sputtering, thermal evaporation, and pulsed laser deposition (PLD) are the mechanisms used in Vac Coat products to create thin films with a thickness of 1 nm to a few micrometers. For more information, visit the site please.
